RGO ONE building process

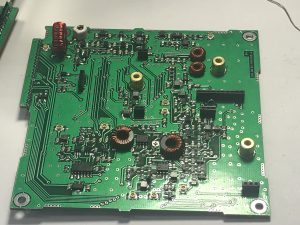

By now all printed circuit boards are ready and populated. We have also some boards – completely tested and aligned:
1. IF/AF board
2. RF MIXER board
3. LO/tones board.
4. Front panel assembly – CPU, LCD/switches boards
5. Both crystal filters – 2,7kHz and the optional 4 pole variable filter

Still working on back panel module – PA and LPF. BPF,SSBGEN are being carefully tested on the bench
